SEK 948.15
Dca -s2,d2,a2
Nexans Ref.:
11196598-801-05
Country Ref.:
0369575
EAN 13:
7330000083844
FIRE PERFORMANCE CLASS
Dca -s2,d2,a2
Conductor flexibility
Flexible class 5
Halogen free
Yes
H07Z1-K (RQ) 450/750 V
H07Z1-K 240 (RQ) 450/750 V
The cable may first be used for inside couplings in switch cabinet boxes and similar applications.
STANDARDS
Product
EN 50525-3-31; SS EN 50525-3-31
Test
EN 50268; IEC 60754; IEC 61034
DESCRIPTION

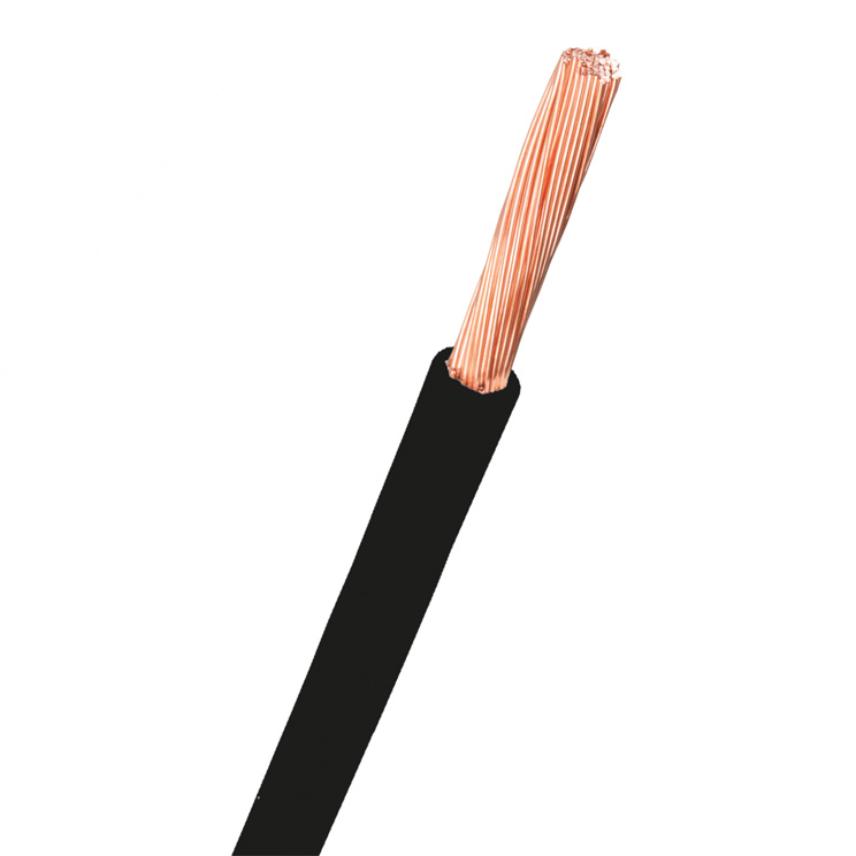

H07Z1-K is a halogen free, HFFR insulated, connecting cable with one circular, multi stranded copper conductor. 300 and 400 mm² does not fulfil EN 50525-3-31, and is because of that called S07Z1. The cable is designed according to EN 50525-3-31 in applicable parts. The conductor has resistance according to EN 60228 class 5. The insulation is marked "NEXANS GS Z1 SEMKO AREA mm2"or "NEXANS GS SEMKO AREA mm2 HALOGENFRI". H07Z1-K meets the requirements for CPR Dcas2d2a2. The cable emits no corrosive gases and has low smoke production during fire. This product is also part of our Windlink® offer dedicated to wind turbines.
Certification
Certified by INTERTEK SEMKO.
Quality and environmental management system
Certified according to ISO 9001, ISO/TS 16949 and ISO 14001.
Rated Voltage Uo/U (Um)
450/750 V
Operating temp.
-40 ... 70 °C
Operation bending rad.
- mm
U.V resistance
-
CHARACTERISTICS
| Construction characteristics | |
| Conductor material | Bare copper |
| Conductor flexibility | Flexible class 5 |
| Conductor shape | Circular |
| Insulation | HFFR |
| Colour | Black |
| Halogen free | Yes |
| Dimensional characteristics | |
| Number of cores | 1 |
| Conductor cross-section | 240 mm² |
| Number of core wires (nb x mm Ø) | - |
| Conductor diameter | 21.3 mm |
| Average insulation thickness | 2.2 mm |
| Nominal outer diameter | 25.7 mm |
| Approximate weight | 2150 kg/km |
| Electrical characteristics | |
| Max. DC resistance of the conductor at 20°C | - Ohm/km |
| Rated Voltage Uo/U (Um) | 450/750 V |
| Usage characteristics | |
| Length | 500 m |
| Packaging | Drum |
| Operating temperature, range | -40 ... 70 °C |
| Laying operation bending radius | - mm |
| U.V resistance | - |
| Bending factor when installed | 4 (xD) |
SELLING AND DELIVERY INFORMATION
H07Z1-K is delivered in specified lengths. The package is marked with manufacturer, type of cable, length and manufacturing date. On the label on boxes upon request also the customer item number and/or order number.
