Eca
Nexans Ref.:
11183240-002-02
Country Ref.:
0384212
EAN 13:
7330000118775
FIRE PERFORMANCE CLASS
Eca
H05V2-K (RK 90°C) 300/500 V
H05V2-K 1 (RK 90°C) 300/500V
The cable is intended to be used for inside couplings in switch cabinet boxes and similar applications.
STANDARDS
Product
EN 50525-2-31; SS EN 50525-2-31
DESCRIPTION

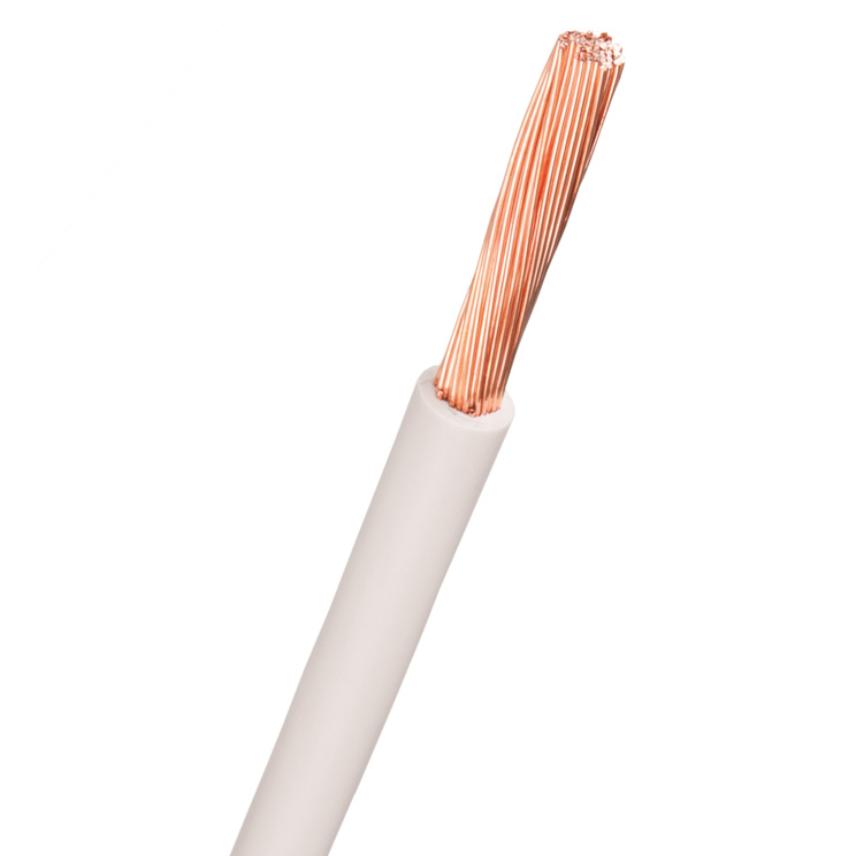

H05V2-K is a lead free, PVC insulated, connecting cable with one circular, multi stranded copper conductor. The cable is designed according to EN 50525-2-31. Maximum 90°C conductor temperature. The conductor has resistance according to EN 60228 class 5. The insulation is marked 'NEXANS GS H05V2-K 0,75 SEMKO HAR MAX 90 C'. H05V2-K meets the requirements for CPR class E.
Certification
Certifeid by INTERTEK SEMKO.
Quality system
Certified according to ISO 9001, ISO/TS 16949 and ISO 14001.
Rated Voltage Uo/U (Um)
300/500 V
Bending factor when laying 4 (xD)
Flame retardant
EN 60332-1-2
Operating temp.
0 ... 90 °C
CHARACTERISTICS
| Construction characteristics | |
| Colour | White |
| Conductor material | Bare copper |
| Insulation | PVC |
| Halogen free | No |
| Dimensional characteristics | |
| Number of cores | 1 |
| Conductor cross-section | 1 mm² |
| Number of core wires (nb x mm Ø) | 32 x 0.19 mm Ø |
| Conductor diameter | 1.3 mm |
| Average insulation thickness | 0.6 mm |
| Nominal outer diameter | 2.45 mm |
| Approximate weight | 14 kg/km |
| Electrical characteristics | |
| Max. DC resistance of the conductor at 20°C | 19.5 Ohm/km |
| Rated Voltage Uo/U (Um) | 300/500 V |
| Usage characteristics | |
| Bending factor when laying | 4 (xD) |
| Length | 100 m |
| Packaging | - |
| Flame retardant | EN 60332-1-2 |
| Operating temperature, range | 0 ... 90 °C |
SELLING AND DELIVERY INFORMATION
H05V2-K is delivered in specified lengths. The package is marked with manufacturer, type of cable, length and manufacturing date. On the label on boxes upon request also the customer item number and/or order number.
